Installed Power (kW): 2x40+40;2x2x40+40 ;2x100+40;2x150+75;2x160+75;2x170+75
Mining Height (m): 0.7~1.25;0.85~1.5;1.3~3.0
Coal Seam Inclination Angle (°): ≤35; ≤35
Coal Hardness (f): ≤3;≤3.5
Surface Height (mm): 550;640;1100
Minimum Dinting Depth (mm): 115;80;199
Draught Speed (m/min): 0~5; 0~5.5
Draught Force (kN): 150;168;358
Draught Form: Hydraulic chainless traction
Drum Diameter (mm): Ф670, Ф800;Ф800, Ф1000;Ф1250, Ф1400, Ф1600
Drum Speed (r/min): 91;85;46
Effective Cutting Depth (mm): 630, 800;630
Supply Voltage (V): 1140;1140
Operation Mode: Manual, Electronic Control, Remote Control of Ranging Arm
Dust Suppression Mode: Internal and External Spray
Design Production Capacity (t/h): 405;437;500
Maximum Non-detachable Dimension (mm): 3670x1185x505;2700x940x700
Maximum Non-detachable Weight (kg): 5500;3415
Total Weight (t): 8, 10;12;26
Match Feeding Machine Model: SGZ630; SGZ630, SGZ730
In the field oflow-power shearers

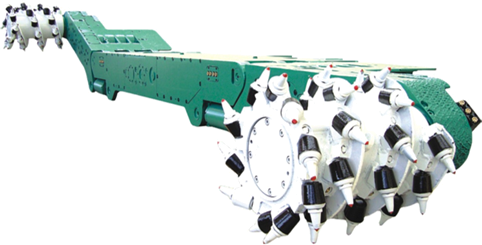

Hydraulictraction shearers
Hydraulictraction shearer
